Brand Name : | Sea radium laser |
Model Number : | HL-CO2-30W/50W/100W |
Certification : | CE,CCC |
Price : | negotiable |
Supply Ability : | 1500 units per month |
Delivery Time : | 5-8 working days |
Gas Laser Marking Machine CO2 Laser Marking Easy to operate and
Marking PU Wood Papers Ceramics
Characteristics of Co2 Laser Marking Machine:

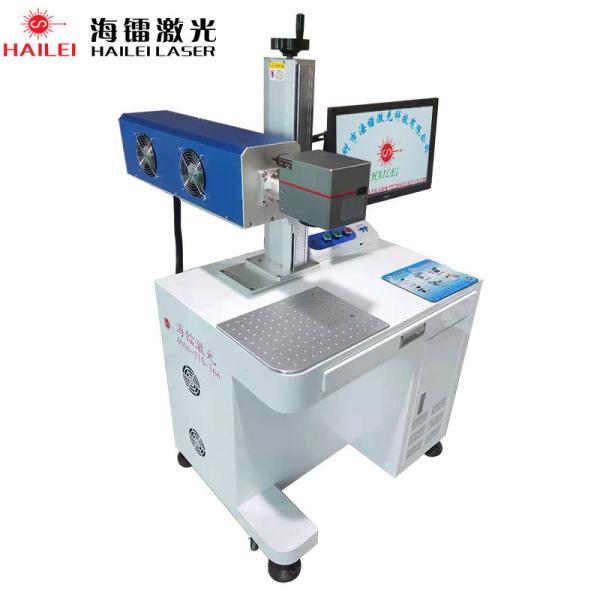

The HL-CO2-30W CO2 laser marking machine is the latest generation of marking
products from our company. It uses the CTI scanning lens and F-θ
lens from the United States, and applies the CO2 laser from the
American Synrad company. It is stable in performance and compact in
size. The system is easy to operate, fully computerized, and
flexible in modification. The HLLaser marking software developed
independently by our company has a Windows interface and can be
compatible with various graphic editing software output files,
including CORELDRAW, AUTOCAD, and PHOTOSHOP. It can perform various
graphic and text marking, as well as barcode marking, and supports
a variety of commonly used graphic file formats.
The CO2 laser marking machine is also commonly referred to as a gas
laser marking machine or a CO2 laser marking machine. The CO2 laser
is a gas laser operating in the infrared light frequency range with
a wavelength of 10.64 microns. It uses CO2 gas filled in the
discharge tube as the medium for generating laser. When a high
voltage is applied to the electrodes, the gas molecules in the
discharge tube emit laser light. The laser energy is amplified to
form a laser beam for material processing. The laser beam path can
be automatically changed by computer controlling the mirrors to
achieve automatic marking.
Product parameter:
Item | Item parameter |
Product name | CO2 laser marking machine |
Wavelength | 1064m |
Maximum laser output power | 10W-275W |
Maximum laser peak power | 30W(superpulse mode) |
Repetition frequency | ≤50KHz |
Cooling method | Air cooling below 30w and water cooling above 30w |
Marking range Square | 50mm~300mm optional |
Optional range | 100mm*100mm |
Engraving depth | ≤3MM |
Engraving speed | ≤7000mm/s |
Minimum line width | 0.1mm |
Minimum character | 0.4mm |
The repetition accuracy | plus or minus 0.01mm |
Software system: | dedicated marking software, automatic coding, support printing serial number, batch number, date, bar code, two-dimensional code, automatic jump number, etc |
Supports character | types Chinese and English fonts |
Power consumption of the host | ≤300W |
Power demand | 220v/50Hz/10A |
Use environment | clean and dust-free, no source, 13℃-28℃, humidity 5%-75% |
Product size | 550cm*900cm*1200cm |
Accessories | Computer, workbench |
Application Fields:
Polyurethane materials: artificial leather, paint, etc. for
non-metal laser marking.
Wood, paper, ceramics, EP material non-metal laser marking such as
clothes hangers.
ABS, acrylic, and PC: laser marking for non-metal electrical
enclosures and electronic products.
Glass material: Wine glass engraving
We welcome you to send requirement to us , we will assist you in selecting or customizing products to meet
your specific needs.
